Camera Access

Camera Access

Difficulty: 🎄🎄🎄
Gain access to Jack’s camera. What’s the third item on Jack’s TODO list?

Hints

Hubris is a Virtue

From: Wombley Cube
In his hubris, Wombley revealed that he thinks you won’t be able to access the satellite’s “Supervisor Directory”. There must be a good reason he mentioned that specifically, and a way to access it. He also said there’s someone else masterminding the whole plot. There must be a way to discover who that is using the nanosat.

Solution

The NanoSat-o-Matic allows downloading a pre-built container with all the required tools inside that can be access via VNC. The GateXOR Gator provides the configuration for a Wireguard VPN connection to the target. The references to NanoSat, along with the tools provided within the container, leads to ESA’s NanoSat MO Framework. Once the interface was set up, I used nmap to determine useful ports on the target:

thedead@dellian:~/hhc2023/Camera Access$ nmap 10.1.1.1
Starting Nmap 7.93 ( https://nmap.org ) at 2023-12-24 16:07 CET
Nmap scan report for 10.1.1.1
Host is up (0.18s latency).
Not shown: 998 closed tcp ports (conn-refused)
PORT     STATE SERVICE
1024/tcp open  kdm
3306/tcp open  mysql

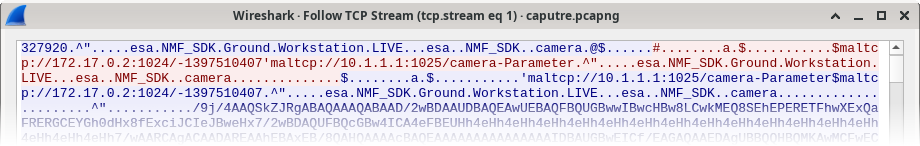

I then used the Consumer Test Tool to connect to maltcp://10.1.1.1:1024/nanosat-mo-supervisor-Directory, I noticed the camera app and started it. I then connected to maltcp://10.1.1.1:1025/camera-Directory. This exposed the action service Base64SnapImage to get a photo along with two parameter services: NumberOfSnapsTaken and Base64SnapImage to get the base64 encoded content of the image. After submitting the action Base64SnapImage, I noticed that NumberOfSnapsTaken increased and Base64SnapImage had some content. Due to the challenging interface of the CTT, I captured the traffic with Wireshark on the host and extracted the Base64 encoded payload:

Once converted to an image I got this:

It’s not beautiful but I could find the TODO list with the third item being CONQUER HOLIDAY SEASON!:
